How to Install Cabinet Hinges in 5-6 Steps

Installing cabinet hinges can seem daunting, but it can be a straightforward task with the right approach. Whether updating old hinges or installing new ones on your Fabuwood cabinets, this guide will walk you through the process step-by-step.

We'll focus on two popular hinge types: The Compact BLUM BluMotion face frame hinges and the BluMotion compact clip hinges. These high-quality hinges are industry standards, offering durability, functionality, and sleek design.

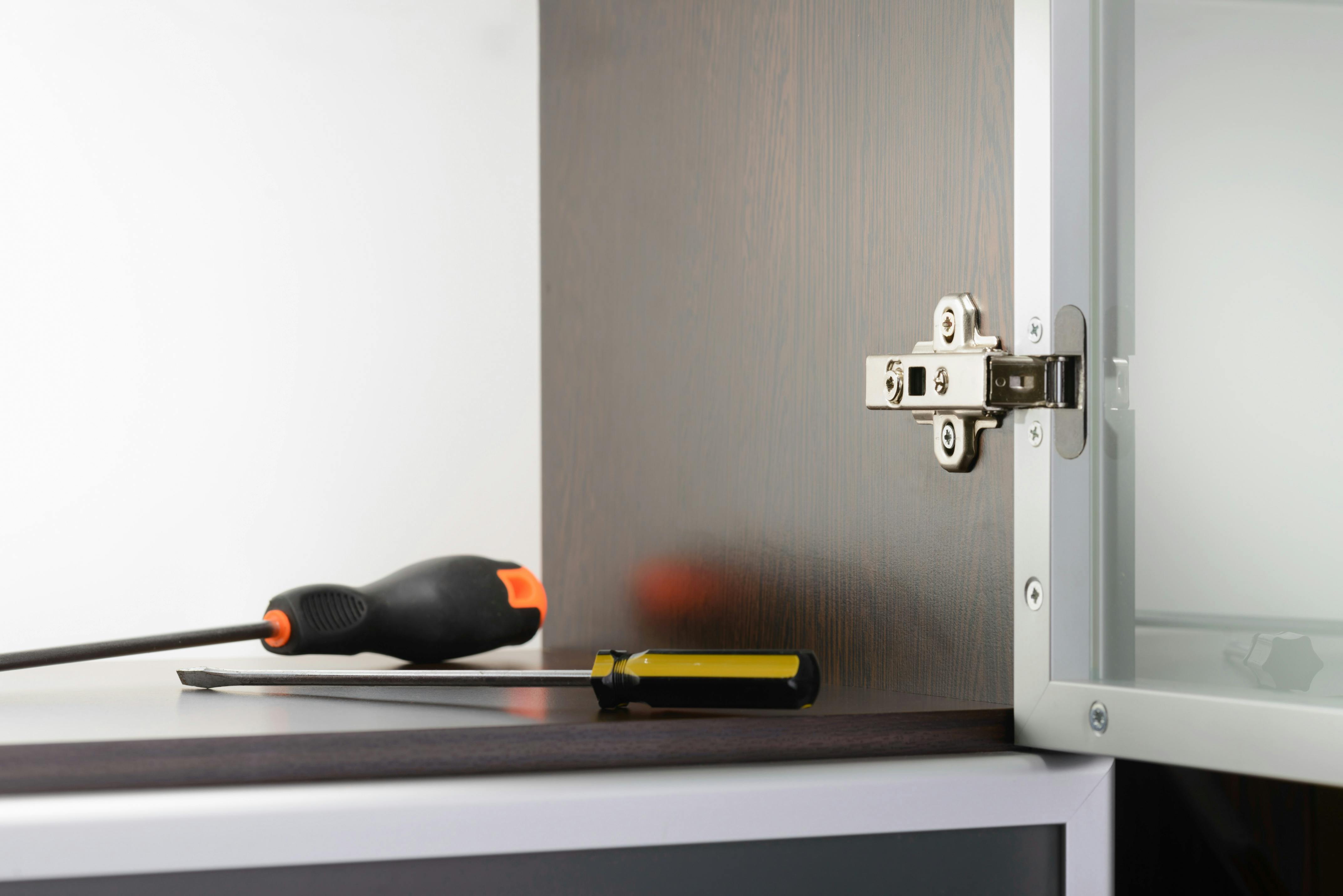

Understanding Different Types of Cabinet Hinges

Before we dive into the steps, it’s essential to understand the different types of cabinet hinges available. Knowing which type of hinge you have is crucial for proper installation and adjustment.

Face Frame Hinge: Also known as a semi-concealed hinge, this hinge is mounted on the cabinet frame. The door wing attaches to the back of the door, making it concealed, while the frame wing is visible on the outside of the frame.

Overlay Hinges: Designed for doors with a full overlay, these hinges are standard in modern cabinetry for their clean, seamless look. Proper alignment is essential to maintain their sleek appearance.

Partial Overlay Hinges: These hinges allow the door to partially cover the cabinet frame, leaving part of the frame visible for a traditional look. Ensuring even exposure to the visible frame is key.

European Hinges: Hidden when the cabinet door is closed, these hinges are adjustable and offer a sleek, concealed design ideal for contemporary kitchens.

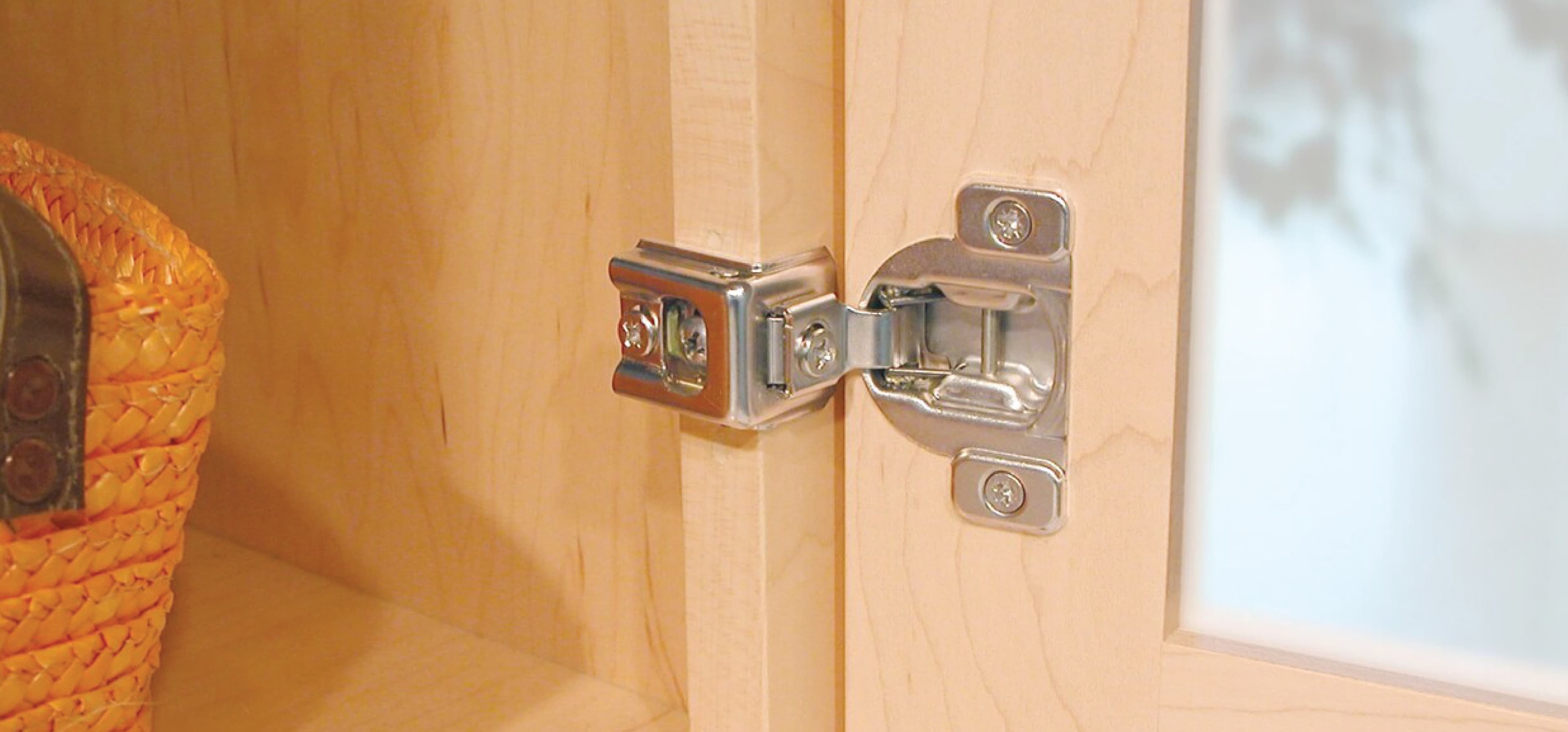

How to Install Compact BluMotion Face Frame Hinges

Installing your hinges involves several key steps, from selecting the right hinges to ensuring they are correctly aligned and secured.

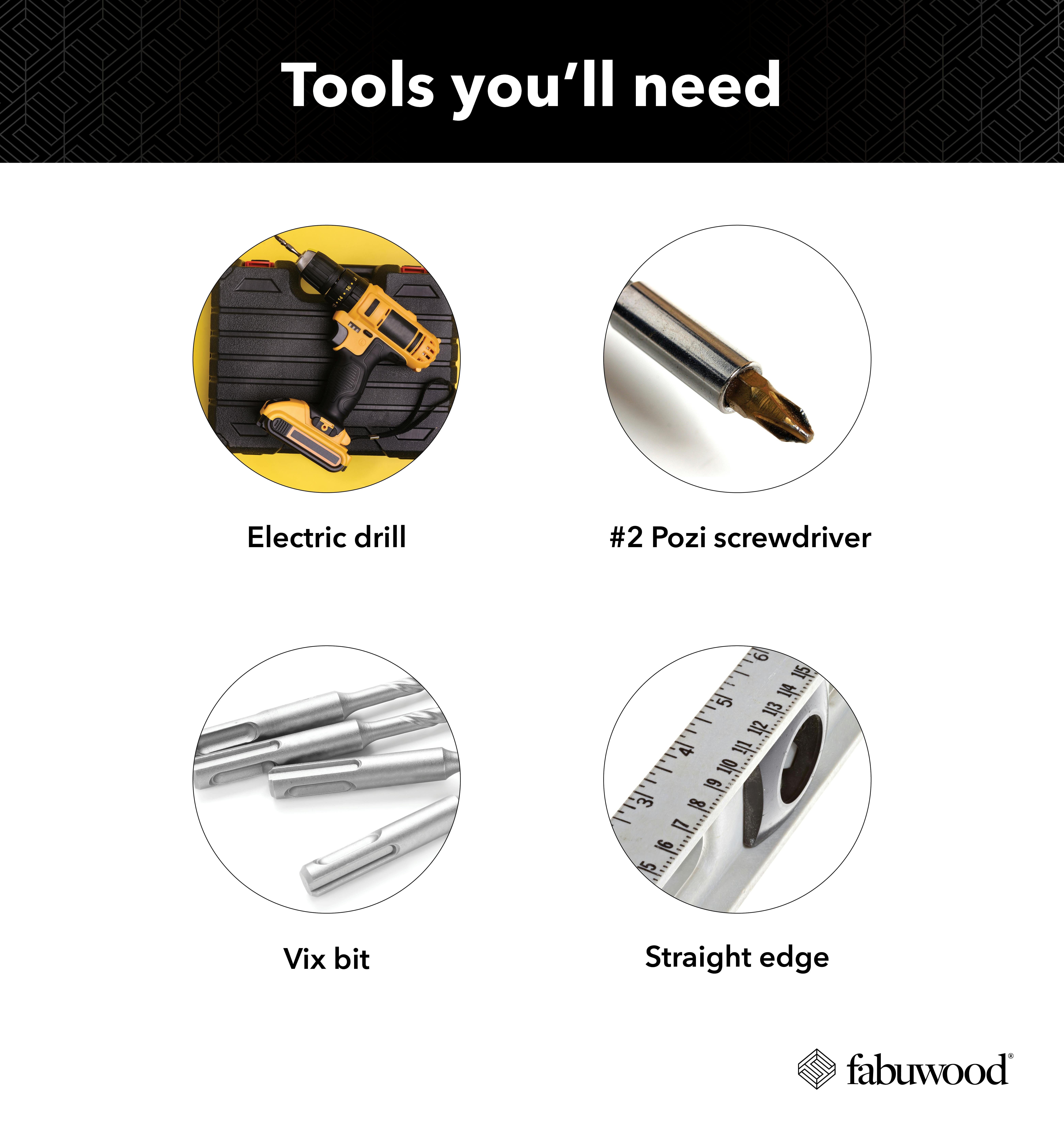

Tools You'll Need

• Electric drill or cordless screw gun with a #2 Phillips bit
• #2 Pozi screwdriver for fine-tuned adjustments
• Vix bit or self-centering pilot bit
• Straight edge

Step 1: Prepare the Doors

• Bore Holes: Start by boring 35mm holes approximately 3mm from the edge of the door to place your hinges.
• Align Hinges: Use a straight edge to align the hinges on the door properly.
• Pre-drill Screw Holes: Use your Vix drill bit to drill pilot holes.

Step 2: Attach Hinges to the Door

Insert Screws: Use #6 by 5/8 inch screws to attach the hinges to the door.

Step 3: Position and Attach Doors to the Cabinet

• Position the Door: Hold the door up to the cabinet in the correct location.
• Attach Mounting Plates: Use #10 by 5/8 inch pan head screws to attach the mounting plates to the cabinet frame.

Step 4: Adjust Door Alignment

• Horizontal Adjustment: Use your #2 Pozi screwdriver to adjust the first screw closest to the front of the hinge, moving the door left or right.
• Vertical Adjustment: Adjust the center screw to move the door up or down. Loosen the mounting screw slightly, adjust the door height, then tighten the screw.
• Depth Adjustment: Adjust the screw at the back of the hinge to move the door in or out.

Step 5: Adjust BluMotion (If Applicable)

A small gray switch inside the hinge cup adjusts the soft-closing strength if you're using integrated BluMotion hinges. Flip the switch to increase or decrease the soft-closing speed.

How to Install Compact Clip Hinges

Installing BluMotion Compact Clip hinges is straightforward with their modern clip-on technology, eliminating the need for tools and screws.

Step 1: Prepare the Door

Start by drilling 35mm holes approximately 3mm from the edge of the door for the hinge cups. Insert the hinge cups into the drilled holes.

Step 2: Attach the Hinge Cups to the Door

Use the screws provided to secure the hinge cups firmly into the door. Make sure the hinge cups are aligned properly and the hinges move freely without binding.

Step 3: Install the Mounting Plates on the Cabinet Frame

Align the mounting plates on the cabinet frame where the hinges will attach. Clip the mounting plates onto the cabinet frame. Ensure they fit snugly and are properly aligned.

Step 4: Attach the Door to the Cabinet

Hold the door correctly against the cabinet frame. Slide the hinges into the mounted plates until they click securely. Repeat for each hinge on the door.

Step 5: Adjust Door Alignment

Use the cam adjustments on the hinge to move the door left or right. Adjust the cam screws to move the door up or down. Adjust the screw at the back of the hinge to move the door

in or out.

Step 6: Adjust BluMotion Soft Close

Inside the hinge cup is a small gray switch to adjust the soft close strength. Flip the switch to increase or decrease the speed.

Cabinet hinges, whether Compact BLUM BluMotion face frame hinges or BluMotion compact clip hinges, can be installed with the right tools and guidance. By following these simple steps, you can achieve a professional and functional result that enhances the look and usability of your cabinets. Before installing your cabinets and hinges, figuring out which layout works best for your kitchen is important. To view different kitchen layouts in 3D and 360, check out our Visualizer.
