How to Drill Holes for Kitchen Cabinet Hinges

Installing cabinet hinges is crucial to your cabinets' overall functionality and longevity.

Properly installed hinges ensure your cabinet doors open and close smoothly without squeaks or misalignments. Additionally, correctly installed hinges can extend the life of your cabinets by preventing premature wear and tear.

These nine steps to drilling holes and installing hinges will help keep your kitchen cabinets looking and functioning optimally for years.

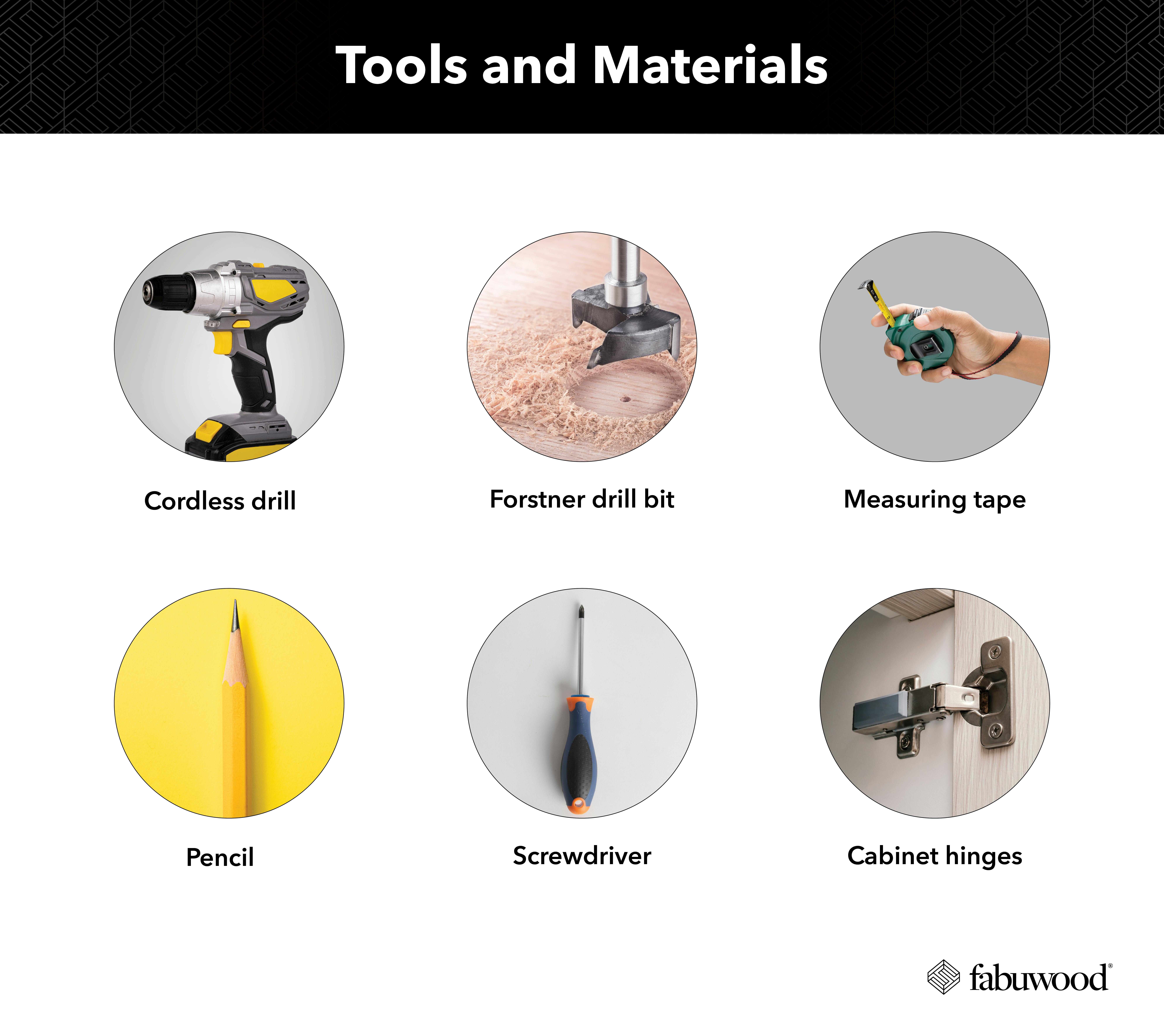

Tools and Materials

Before you begin, gather the following tools and materials:

• Cordless drill
• Forstner drill bit (the same size as the cup hinge)
• Measuring tape
• Pencil
• Screwdriver
• Cabinet hinges

Cabinet Door Hinge Components:

• Mounting Plate: Attaches to the cabinet frame.
• Adjusters: Allow minor door adjustments.
• Mounting Plate Fixings: Secure the plate to the cabinet frame.
• Hinge: The pivoting part that connects the hinge cup to the mounting plate.
• Screws: Fasten the parts together.
• Hinge Cup Fixings: Secure the hinge cup to the door.
• Hinge Cup: Sits in a recessed hole on the door.

Now that you understand the components, you’re ready to drill hinge holes and attach the hinges correctly.

Step-by-Step Guide to Installing Cabinet Hinges

Step 1: Preparation

Ensure you have a screw gun, Forstner bit (1 3/8 inch), self-centering drill bit, pencil, tape measure, and a scrap piece of plywood or a straight edge.

Step 2: Ready Your Cabinet Door

Your door should be clean and positioned correctly before starting the hinge installation.

Step 3: Mark the Door

On the back side of the door, measure 3 inches from the top edge and 7/8 inches from the side edge. Mark these points with a pencil. Repeat this process for the bottom edge of the door.

Optional Step: Use a Jig for Enhanced Precision

Using a jig to install cabinet door hinges ensures precise and consistent placement, minimizing errors and saving time. This results in professional-quality installations.

Here’s how you can use it:

• Prepare the Jig: Place the jig on the edge of the door where the hinges will be installed.
• Align the Jig: Ensure the bottom edge of the jig is flush with the bottom (or top) edge of the door.
• Mark Pilot Holes: Use the jig's pre-marked crosses to guide where to drill the pilot holes.
• Drill Pilot Holes: Use a 2mm drill bit to lightly drill through the crosses to create pilot holes. These should be shallow, as they are only guides for later steps.
• Repeat at Both Ends: Perform this process at both ends of the door to ensure proper hinge placement.

Step 4: Drilling the Hinge Holes

Using the Forstner bit, drill holes at the marked points, ensuring they are about 1/2 inch deep. Regularly check the depth to avoid drilling through the door.

Optional Step: Use Double Stick Tape

You can use double-stick tape to hold the door in place for extra stability during drilling.

Step 5: Inserting and Aligning Hinges

Insert the hinges into the drilled holes. Use a straight edge or a scrap piece of plywood to ensure the hinges are aligned parallel to each other.

Step 6: Pre-Drilling Screw Holes

With a self-centering drill bit, pre-drill holes for the hinge screws through the hinge plates into the door.

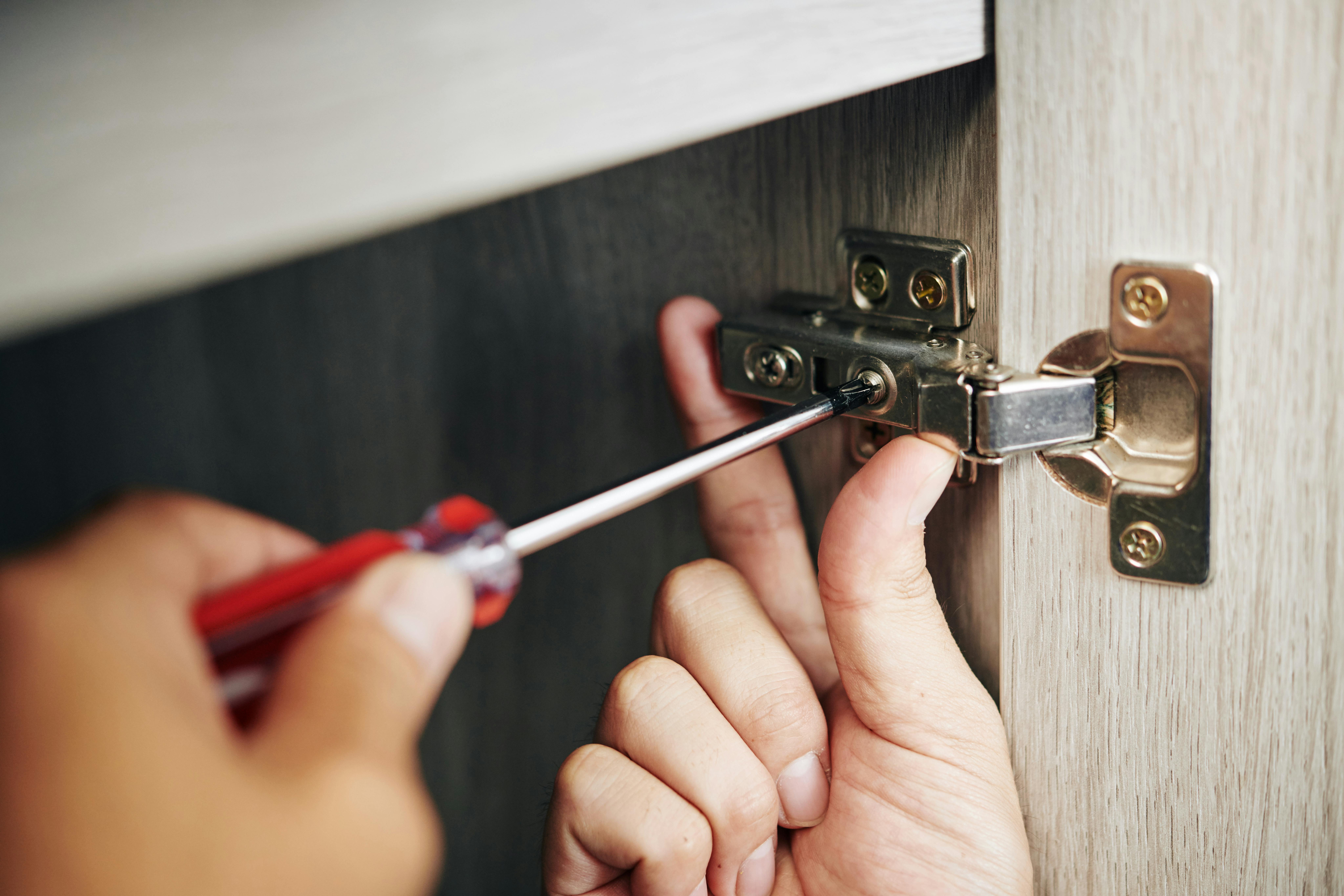

Step 7: Securing the Hinges

Switch to a Phillips head bit and carefully screw the hinges into the pre-drilled holes. Repeat this process for both the top and bottom hinges.

Step 8: Final Adjustments

Verify that the hinges are securely fastened and aligned correctly. Test the door to ensure smooth operation and make any necessary adjustments.

Step 9: Finishing Touches

Wipe off any dust and debris from drilling. If desired, apply rubber bumpers on the door interior at the corners opposite the hinges to prevent damage and reduce noise.

By following these steps, you'll achieve a professional hinge installation on your cabinet door, whether you use essential tools or a specialized jig for enhanced precision.

How Many Hinges do Kitchen Cabinet Doors Need?

Most standard kitchen doors require two hinges (one at the top and one near the bottom), but the exact number varies according to the door's size and weight.

The size and weight of your cabinet doors will significantly affect the number of hinges required for proper support. Incorrect hinge installation can cause doors to sag over time, compromising the door and the cabinet frame.

Properly installing cabinet hinges is essential for ensuring the functionality and longevity of your cabinets. You can quickly secure your cabinet hinges by following these nine steps, from marking the door to drilling the holes and installing and securing the hinges. Order your sample doors today to start visualizing your ideal kitchen with BLUM hinges.
